VPC Deployment

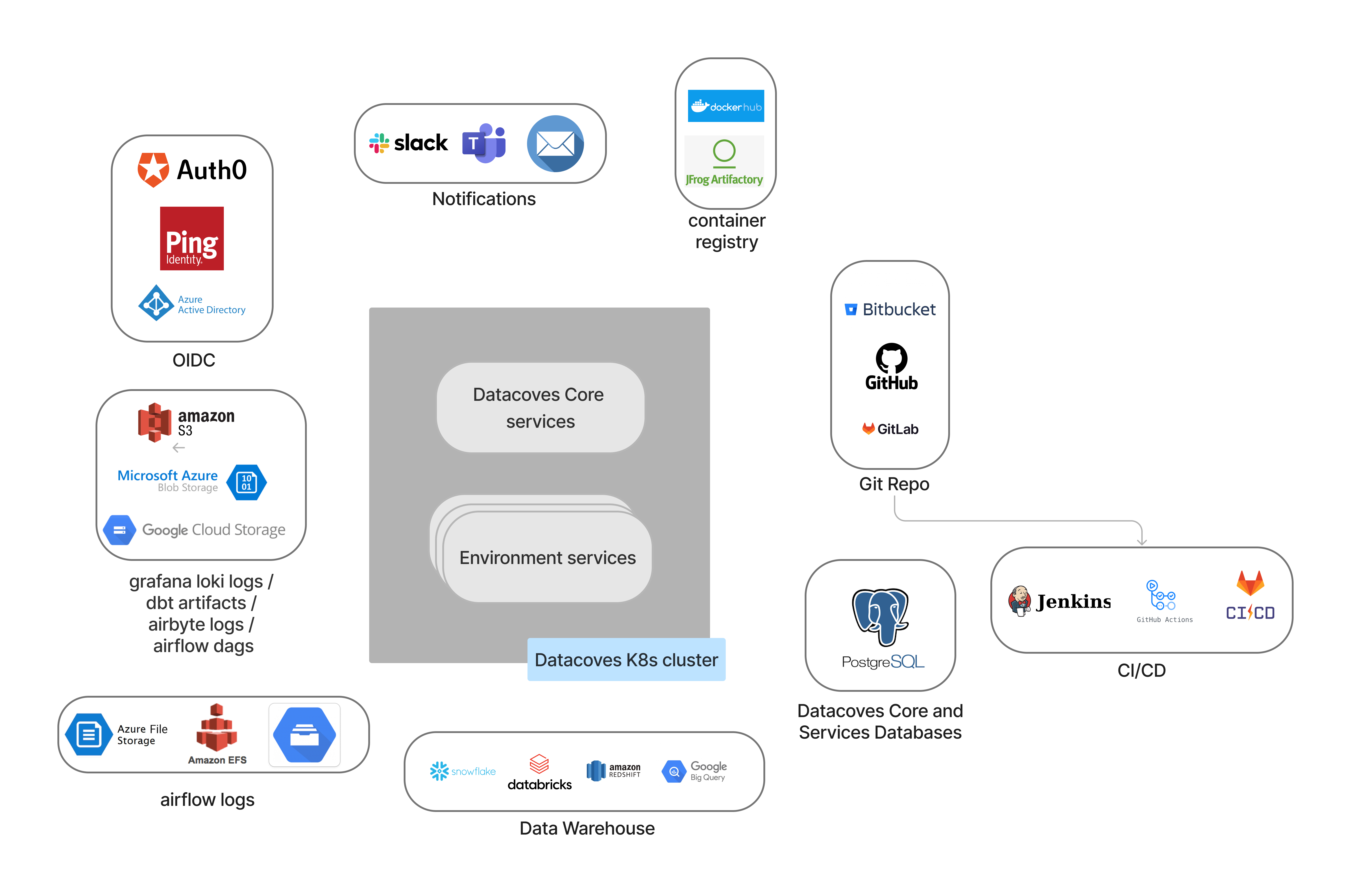

Datacoves is designed to work on Public or Private Virtual Clouds. The following diagram shows the main services required by Datacoves when deployed on a VPC.

Datacoves Architecture

Dependencies

Datacoves can be deployed on AWS, Azure or Google Cloud.

Here is the list of services required, each cloud provider offers the service with a different name/brand.

Service	Purpose	Requirements	Quantity
Database	Datacoves core services	PostgreSQL > v.14, Minimum 2vcpu, 16Gb memory (*)	1 server
Database	Datacoves stack services	PostgreSQL > v.14, Minimum 4vcpu, 32Gb memory (*)	1 server
Blob storage	DBT artifacts	N/A	1 bucket
Blob storage	Grafana logs	Lifetime policy with 30 days retention	1 bucket
Blob storage	Airflow DAGs	N/A	1 bucket per Airflow instance
Blob storage	Airbyte logs	N/A	1 bucket per Airbyte instance
Blob Storage	Airflow logs	N/A	1 bucket per Airflow instance
OIDC provider	Datacoves SSO	Oauth 2.0 OIDC compliant provider	1 provider (optional)
Managed Kubernetes	Runs the platform	> v1.34	Clusters are a minimum of 4 servers, sizing varies
Git server	DBT development version control	> v2.33	1 server, or github/gitlab/etc.
CI/CD server	DBT development	N/A	1 server, or github/gitlab/etc.
HTTPS Certificate	Security	N/A	Two certificates are needed; datacoves.yourdomain.com and *.datacoves.yourdomain.com. Certbot is supported.
DNS Entries	Host Resolution	N/A	Exact configuration varies per cloud provider

(*) min. requirements may vary depending on the number of environments. For smaller installations, only one database server is needed.

Optional dependencies

Service	Purpose	Requirements	Quantity
Docker Registry	Docker images registry	Any docker API compliant image registry	1 service account
SMTP account	Airflow notifications	N/A	1 service account
Slack account	Airflow notifications	N/A	1 account
MS Teams account	Airflow notifications	N/A	1 account
