Variables and Connections

note

dbt-coves generate airflow-dags does not support reading variables/connections, but you may generate the initial Python Airflow DAG and add the connection / variable information.

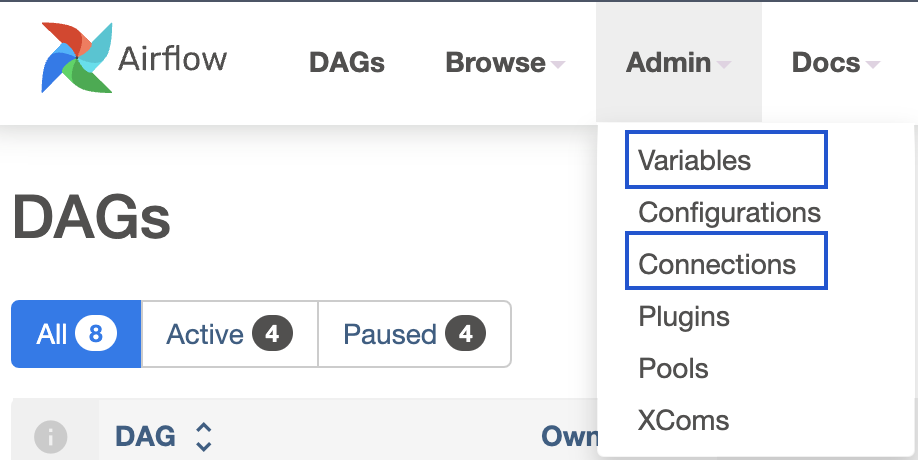

The best way to store and retrieve information within Airflow is to use Variables and Connections, both available on the Admin upper dropdown.

select More

The main difference between them is that Variables is a generic multi-purpose store, while Connections are aimed at third-party providers.

tip

Rather than using connections or variables stored in Airflow’s database, we recommend using a Secrets Manager. These secrets are encrypted and can be stored either in Datacoves Secrets manager or a third-party secrets manager like AWS Secrets Manager

Usage​

Variables​

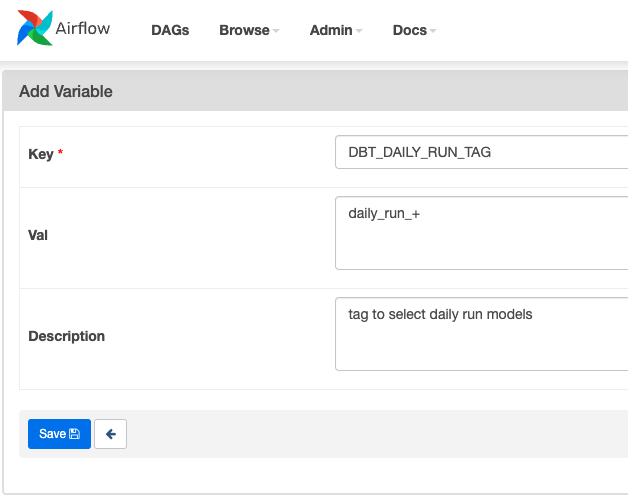

After creating a variable in Airflow's UI, using it is as simple as importing the Variable model in your DAG and getting it's name. If a variable contains SECRET on it's name, value will be hidden:

select More

from pendulum import datetime
from airflow.decorators import dag, task
from airflow.models import Variable

@dag(
    default_args={"start_date": datetime(2024, 1, 1)},
    description="DAG that outputs a Variable",
    schedule="0 0 1 */12 *",
    tags=["version_1"],
    catchup=False,
)
def variables_dag():

    @task.datacoves_bash(="main")
    def transform():
        daily_run_tag = Variable.get("DBT_DAILY_RUN_TAG")
        return f"dbt build -s 'tag:{daily_run_tag}'"

    transform()

variables_dag()

Connections​

Consuming connections data is also straightforward, though you need to take it's attributes into consideration, as they'll vary depending on the provider.

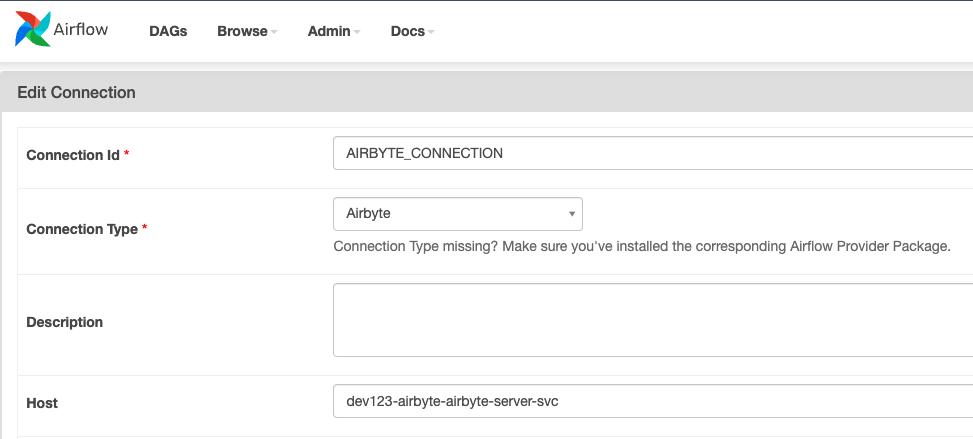

In the following example, a connection of type Airbyte is created, and it's host is echoed in a DAG.

select More

from pendulum import datetime

from airflow.decorators import dag, task
from airflow.models import Connection

@dag(
    default_args={"start_date": datetime(2024, 1, 1)},
    description="DAG that outputs Airbyte Hostname",
    schedule="0 0 1 */12 *",
    tags=["version_1"],
    catchup=False,
)
def connections_dag():

    @task.datacoves_bash()
    def echo_airbyte_host():
        airbyte_connection = Connection.get_connection_from_secrets(conn_id="AIRBYTE_CONNECTION")
        return f"echo 'Airbyte hostname is {airbyte_connection.host}'"

    echo_airbyte_host()

connections_dag()
